Technical Highlights
Ultra-High Remanence → Br up to 1.45T for superior torque density in compact servo designs
Low-Temp Coefficient → α(Br) = -0.09%/°C ensures stable performance from -40°C to 150°C
Anti-Demagnetization → Hcj ≥ 25 kOe withstands high dynamic overloads without flux loss
Halbach Array Optimization → 30% higher air-gap flux vs. conventional radial magnetization
Performance Advantages
Near-Zero Cogging → Precision-grade magnet segmentation minimizes torque ripple (<0.2%)
High-Frequency Stability → Low eddy-current loss formulation enables 5kHz+ PWM switching
Corrosion-Resistant Coating → Ni-Cu-Ni plating passes 1000hr salt spray tests (ISO 9227)
Vibration-Tolerant Bonding → Epoxy-RE composite survives 50G mechanical shock
Future Trends (Magnet-Centric)
Dy-Free High-Hcj → Grain boundary diffusion (GBD) NdFeB achieves Hcj=30kOe @ 180°C
3D-Printed Flux Paths → Additive-manufactured pole arrays boost efficiency by 12%
Self-Sensing Magnets → Embedded Hall-effect layers enable sensorless position detection
Recyclable Formulations → Hydrogen-based recycling recovers 99% rare earths
Application of NdFeB in Servo Motors

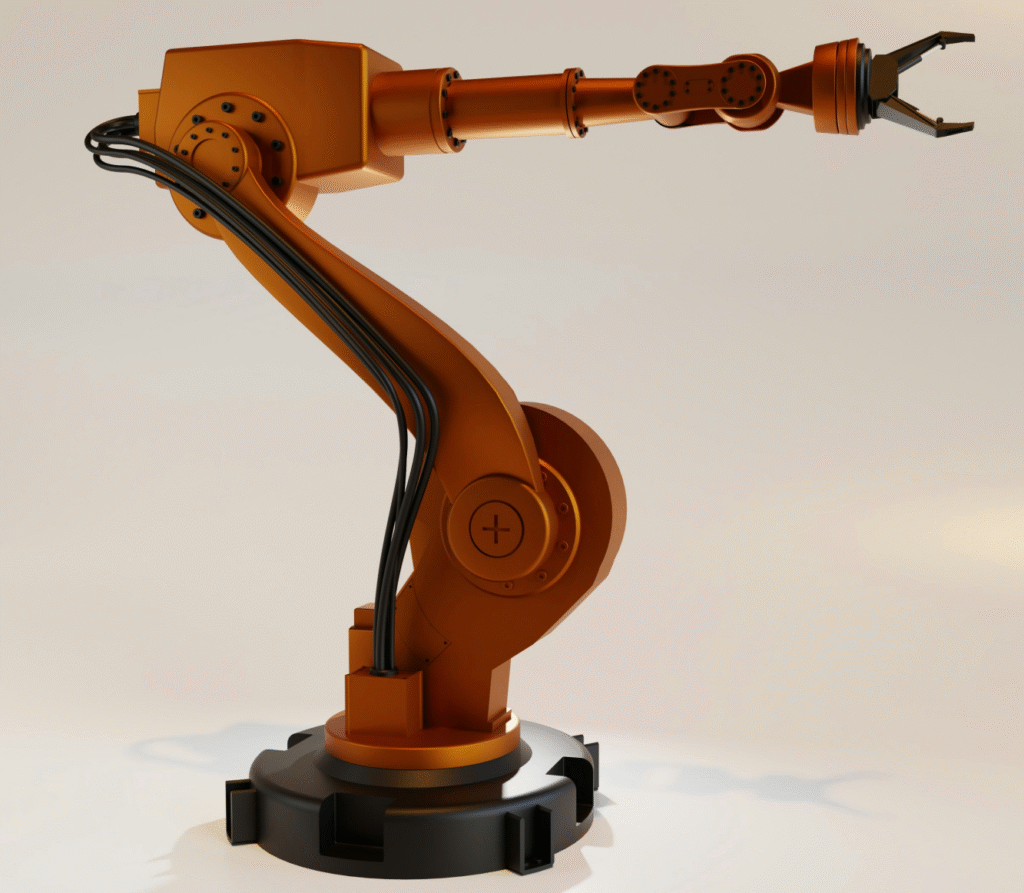

NdFeB (Neodymium Iron Boron) permanent magnets, known for their unmatched magnetic strength and dynamic stability, are the driving force behind high-performance servo motors. As industrial automation demands faster response times, higher precision, and greater energy efficiency, servo motor designs have evolved from traditional radial-field configurations to advanced hybrid and direct-drive topologies. By leveraging optimized magnetic circuit layouts and precision magnet segmentation, servo motors achieve ultra-low cogging torque, near-instantaneous acceleration, and exceptional positioning accuracy—critical for robotics, CNC machining, and semiconductor manufacturing.
The superior magnetic energy product (BHmax ≥ 52 MGOe) of NdFeB enables servo motors to deliver peak torque densities exceeding 15 Nm/kg, while maintaining 98%+ efficiency under dynamic loads. The high coercivity (Hcj ≥ 20 kOe) ensures stable performance even under frequent overload conditions, preventing demagnetization in high-duty-cycle applications. Furthermore, advanced magnet bonding techniques and corrosion-resistant coatings (e.g., Ni-Cu-Ni or epoxy composite) enhance durability in harsh industrial environments, including high humidity, vibration, and particulate exposure.
Historically, servo motor performance was constrained by thermal limitations, with standard NdFeB grades restricted to 80–100°C operating temperatures. However, breakthroughs in grain boundary diffusion (GBD) technology and Tb/Dy-optimized magnet formulations have pushed thermal stability to new heights. Modern high-temperature grades (SH: 150°C, UH: 180°C, EH: 200°C) now enable servo motors to operate reliably in demanding conditions, such as high-speed spindles (20,000+ RPM) and automated welding systems. Emerging Dy-free high-Hcj NdFeB grades further reduce reliance on critical rare-earth materials while maintaining 180°C+ thermal resilience.
Looking ahead, NdFeB magnets will remain indispensable in next-generation servo systems, particularly in:
Integrated motor-drive units (single-cable EtherCAT/POWERLINK solutions)
AI-optimized servo control (real-time adaptive tuning via edge computing)
Ultra-lightweight robotics (carbon fiber-encapsulated rotor designs)
High-frequency PWM operation (5–10 kHz switching with minimal eddy losses)
With ongoing advancements in additive-manufactured flux paths, embedded self-sensing magnet arrays, and sustainable recycling processes, NdFeB-based servo motors are poised to redefine precision motion control in Industry 4.0 and beyond.
